Currently out of Stock

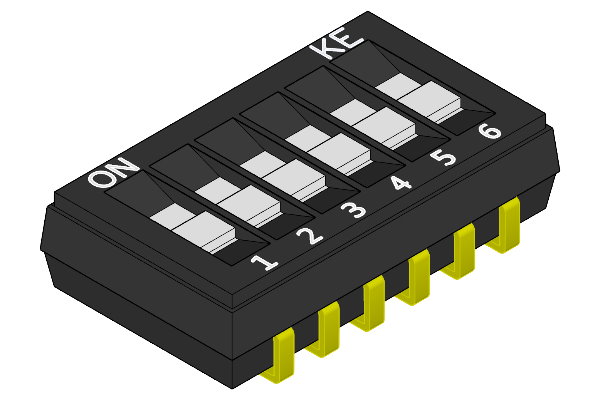

KE DSHP Series DSHP06TJGET

Model: DSHP06TJGET

Catalog

Specification

3D

You must register and log in to view.

Qty:

Contact us about this product

Manufacturer
KE

Model
DSHP06TJGET

Switches

Circuit type
Single Pole Single Throw

Color
Black

No. of pins
6

Series
DSHP

Terminal pitch
1.27mm

Size

Length
5.40mm

Width
9.22mm

Height
2.30mm

Electrical characteristics

Non-Switching Rating
100mA, 50VDC

Switching Rating
25mA, 24VDC

Insulation resistance
500mΩ at 500VDC

Contact resistance
50mΩ Max

Mechanical characteristics

Dielectric strength
500VDC/1min

Operating force
9.80N Max

Travel
0.60mm

Environmental characteristics

Operating temperature
－40 to ＋85℃

Lifetime characteristics

Operating life
2,000 times

Packaging/Quantity

Packing Specification
Tube

Standard Packing
50 Piece
