Currently out of Stock

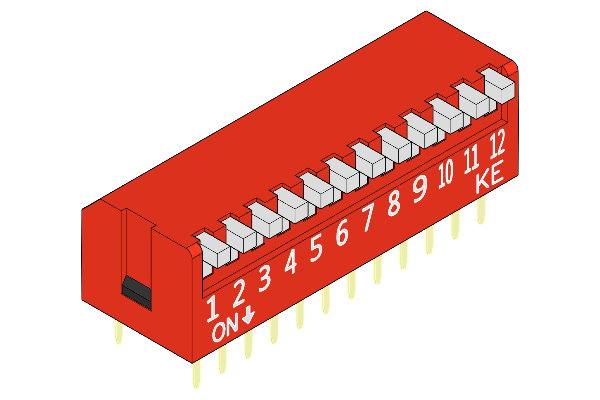

KE DSDP Series DSDP12LHGETR

Model: DSDP12LHGETR

Catalog

Specification

3D

You must register and log in to view.

Qty:

Contact us about this product

Manufacturer
KE

Model
DSDP12LHGETR

Switches

Circuit type
Single Pole Single Throw

Color
Red

No. of pins
12

Series
DSDP

Terminal pitch
2.54mm

Size

Length
10.80mm

Width
32.03mm

Height
9.40mm

Electrical characteristics

Non-Switching Rating
100mA, 50VDC

Switching Rating
25mA, 24VDC

Insulation resistance
500mΩ at 500VDC

Contact resistance
50mΩ Max

Mechanical characteristics

Dielectric strength
500VDC/1min

Operating force
9.80N Max

Travel
1.80mm

Environmental characteristics

Operating temperature
－20 to ＋70℃

Lifetime characteristics

Operating life
2,000 times

Packaging/Quantity

Packing Specification
Tube

Standard Packing
15 Piece
